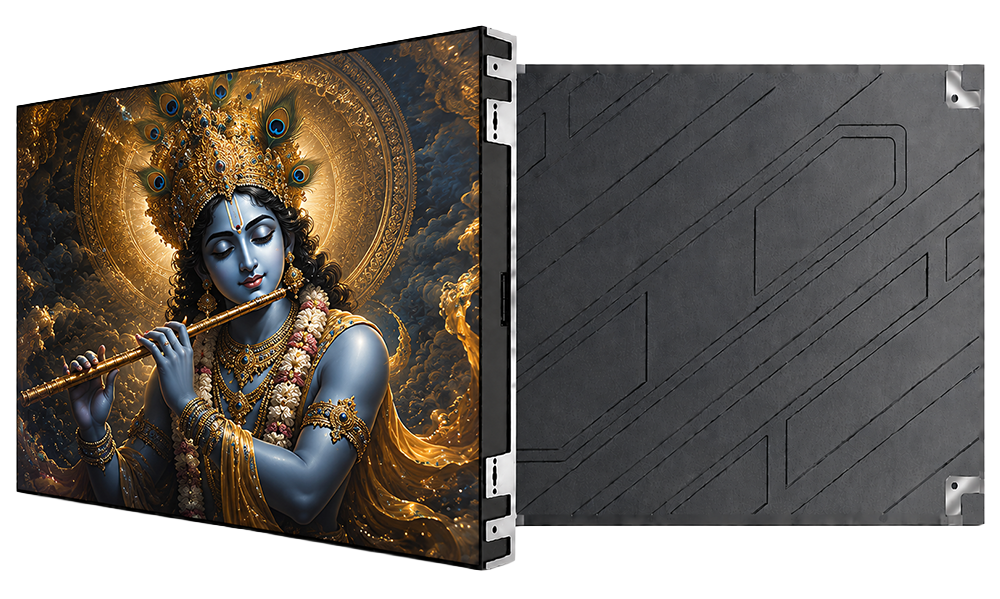

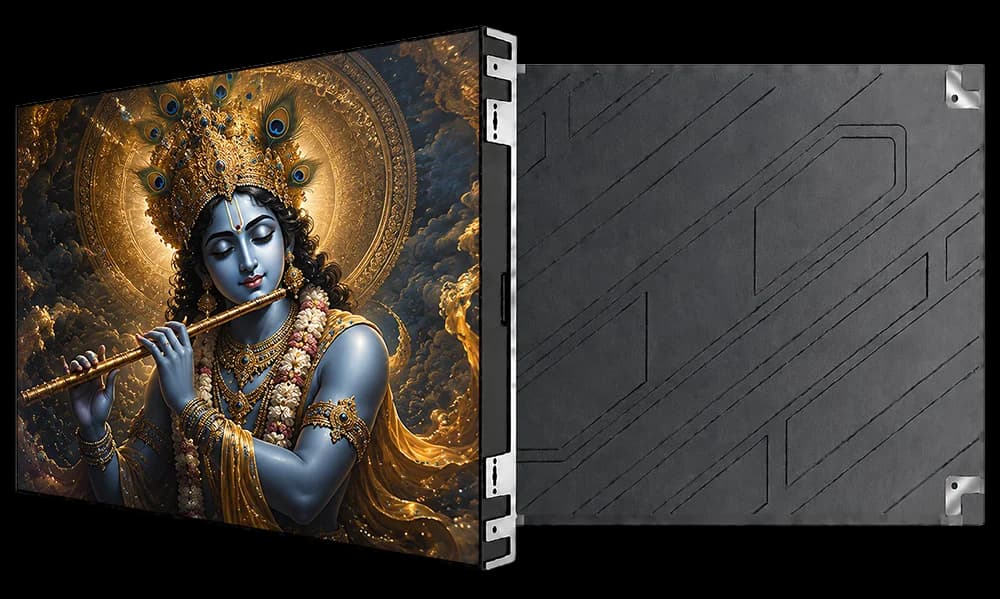

P1.25 COB LED Display
Transforming Indoor Spaces with Ultra-Fine COB LED Technology
Our P1.25 COB LED Display is engineered for premium indoor environments requiring high-resolution visuals, seamless display performance, and enhanced surface protection. Designed for control rooms, corporate environments, broadcast studios, and mission-critical installations, it delivers exceptional image clarity with stable and reliable operation.
Built with advanced COB (Chip-on-Board) technology and precision die-cast aluminum structures, this display ensures enhanced durability, energy efficiency, and superior visual uniformity. Its high refresh rate and fine pixel pitch provide smooth and flicker-free visuals ideal for close-viewing applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Pixel Pitch | 1.25mm |
| Pixel Density (dots/m²) | 640,000 |
| LED Type | COB |
| Module Size | 300×168.75 mm |
| Module Resolution | 240×135 |
| Cabinet Size | 600×337.5 mm |
| Cabinet Resolution | 480×270 |
| Brightness | 600–800 nits |
| Contrast Ratio | 10000:1 |
| Viewing Angle | 160°/160° |
Need the full datasheet or a quote for P1.25 COB LED Display?
Connect with our LED engineers for detailed mechanical drawings, power distribution schematics, and custom pricing.
Engineered for High-Performance Indoor Applications
The P1.25 COB LED Display is optimized for ultra-fine indoor environments requiring seamless visuals and reliable long-term operation. It delivers stable display performance across premium indoor installations.
- Ultra-fine pixel pitch for close-viewing visual clarity
- COB protection technology improves display durability performance
- High refresh rate ensures smooth visual playback quality
- Wide viewing angles deliver seamless visual consistency
- Energy-efficient system supports stable long-term operation
Applications
- Control rooms (example: real-time monitoring displays)
- Broadcast studios (example: live production video walls)
- Corporate spaces (example: executive presentation screens)
- Command centers (example: operational dashboard displays)
- Premium installations (example: luxury indoor LED walls)
Key Benefits
- Ultra-fine COB technology for premium indoor visual clarity
- High refresh performance ensures seamless visual playback
- Durable protected surface improves display reliability
- Energy-efficient system supports continuous operation environments
- Modular cabinet structure enables scalable display installations
Engineered for Global LED Excellence
- Global manufacturing expertise across China and India ensuring quality
- Advanced LED components deliver high brightness and color accuracy
- High refresh rate ensures smooth and flicker-free visuals
- Precision PCB and IC engineering ensure stable display performance
- Durable cabinet structures designed for long-term reliable performance
- Energy-efficient systems reduce power consumption and operational costs
- Modular LED design enables flexible installation and scalability
- Consistent visual output ensures uniform brightness and seamless viewing
